370 mm Gas Cutting Torch oxy acetylene automatic cutting torch

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
longteng
Model Number:
LT-ZT-4
Product Name:
Digital control cutting torch
Certificate:
CE ISO
Package:
Carton
Inlet connection:
M16*1.5mm
Length of tube:

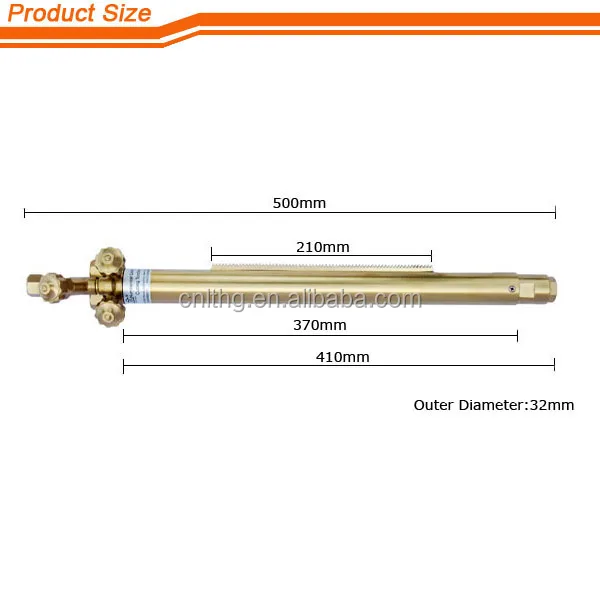

370mm
OD of tube:
30mm or 32mm
Packaging & Delivery
Packaging Details
general packing
Delivery Time
5 days after the payment

370 mm Digital Cutting Torch oxy acetylene automatic cutting torch


1)Description:
1.It is made of high quality forging brass.
2.Balanced pressure structure design.
3.It adopts silver solder, which can effectively avoid leakage.
4.O.D.of the tube: 30 mm and 32mm.
5.The length of the tube: 180mm,250mm,300mm,370mm,450mm.
6.The gear rack can be installed at 4 different positions with 90 degrees between two positions.
7.It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.



2)Applications:

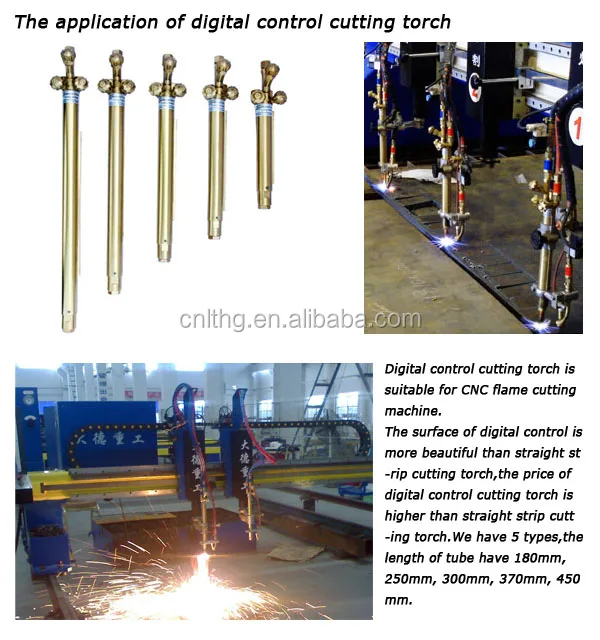

Machine Use Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.

During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas.

The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.


3)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
4)Specifications:

Model NumberLT-GJ-DC-01
Brand NameLongteng , OEM
Place of OriginWuxi, China (Mainland)
CertificationCE,ISO
Loading PortFOB Shanghai
Payment TermsT/T, L/C, Western Union
MaterialBrass
Working formother
Driving formAutomatic
Electric currentDirect(A)
TypeInjection-type torches
Woking pressure254 KN







Thimble Length(mm)Cutting Thickness(mm)Rack Length/ModulusAcetylenecutting tipsPropane cutting tipsInlet connection
180300  90/1G02#0-#5G03#0-#5M16*1.5
250300150/1G02#0-#5G03#0-#5M16*1.5
300300210/1G02#0-#5G03#0-#5M16*1.5
370300210/1G02#0-#5G03#0-#5M16*1.5
450300310/1G02#0-#5G03#0-#5M16*1.5
